A11

A11

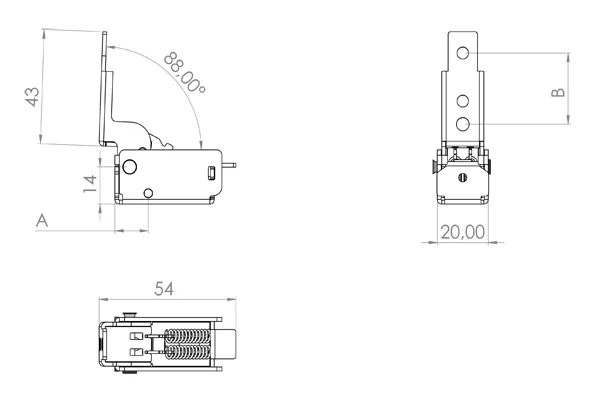

Technical Drawing

A11 Teknik Çizim

A simple hinge from Atasan’s portfolio of special products; this hinge made of sheet metal is for lower doors.



Technical Specifications

Door Weight 0.6 - 3 kg
Maximum distance from pivot point to centre of gravity 120 mm
Opening Angle 84 °
Operation Temperature 115 °C
