Overview
The body of new generation hinges is now on the frame. With this model which is designed from solid glass and in which the “soft close” mechanism is used, Atasan offers an alternative product that combines practicality with a modern style.

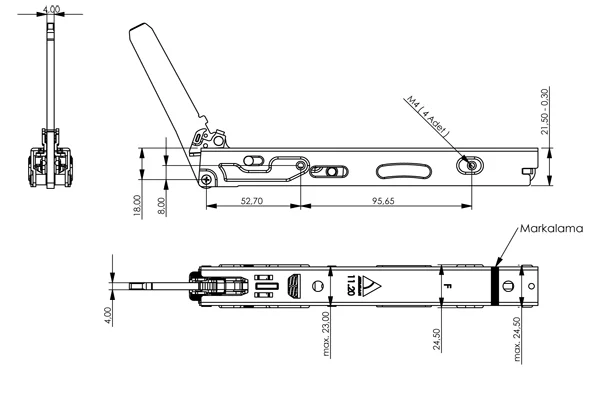

Technical Drawing
Detailed engineering schematic with all critical dimensions.
Specifications
Technical properties at a glance.
Technical Specifications

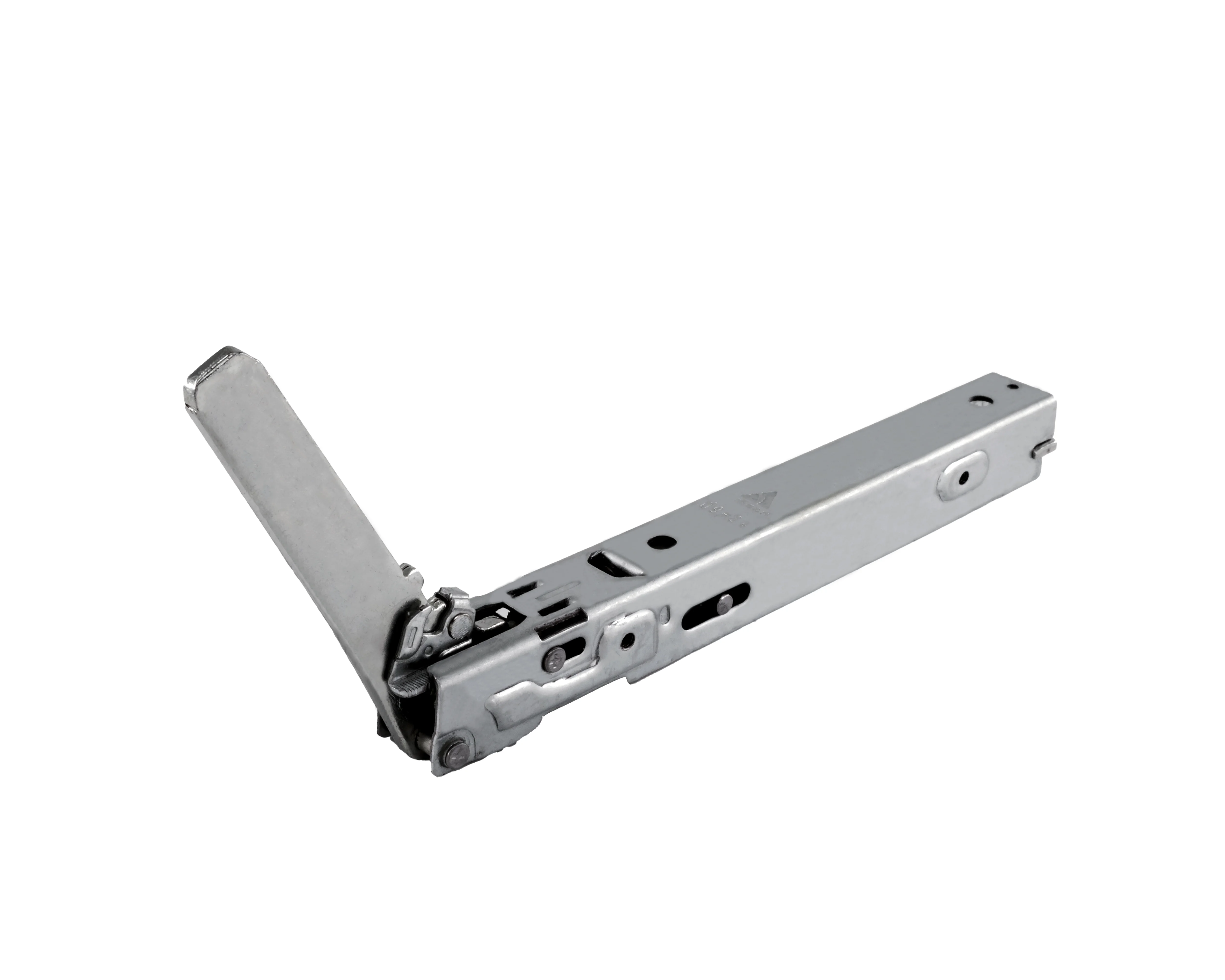

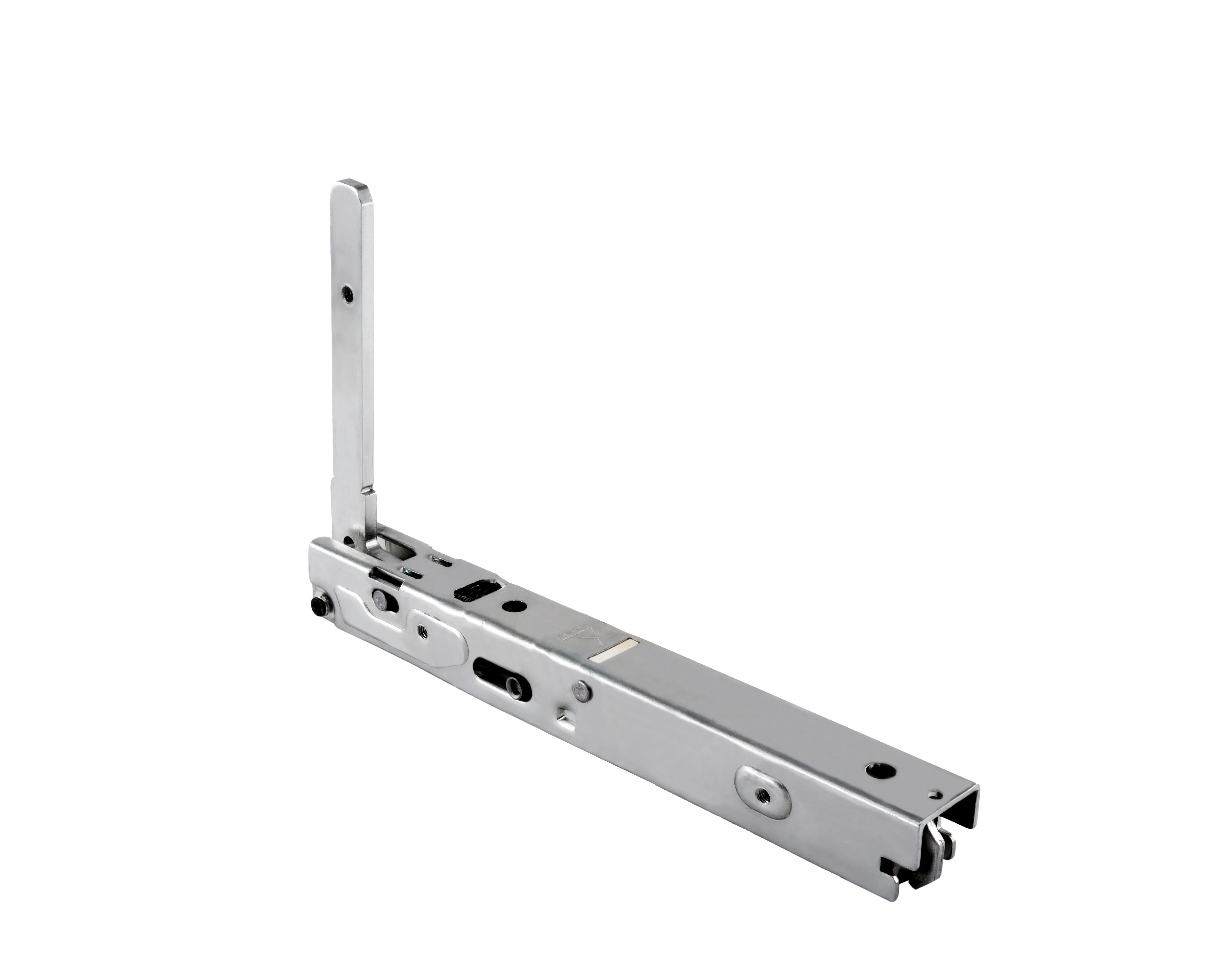

Mod K19 Oven Door Hinges – Extension Spring System / Long Arm Design
Product Overview
The Mod K19 oven door hinge is designed with an extension spring system and a long arm configuration to provide stable, balanced, and cost-efficient oven door movement.
This oven door hinge system is specifically developed for applications requiring full glass door designs, eliminating the need for glass cut-outs while improving aesthetics and reducing manufacturing costs.
Long Arm Hinge Design Advantage
In this design, the hinge is positioned inside the chassis, while the arm is directly mounted to the door.
The long arm oven door hinge configuration extends the lever arm, improving load distribution and contributing to stable and balanced door movement across different door weight applications.
Flexible Spring System & Force Adjustment
The system enables flexible force adjustment using the same spring configuration and supports fast adaptation to different applications.
The hinge system is based on a multi-combination tension spring structure with adjustable spring force, allowing the required torque characteristics to be achieved for different door weights.
This makes it a highly adaptable adjustable oven door hinge solution.
Door Weight Compatibility & Performance
The hinge is designed for door weight ranges between 2.5 – 12 kg, with high static load resistance depending on configuration.
Opening angle: 86°
Operating temperature: up to 115°C
Life cycle performance: ≥ 20,000 cycles
Pivot to center of gravity distance: 230 mm
Static load capacity: 35+ kg (developed in accordance with USA UL safety standards)
This ensures reliable performance for both standard and heavy-duty oven door hinge applications, with a strong focus on user safety.
Full Glass Door Compatibility
This configuration eliminates the need for glass cut-outs, allowing full glass door designs.
Improved product aesthetics
Reduced glass processing cost
Simplified manufacturing process
Mounting & Integration
The hinge is designed for horizontal positioning on the oven chassis, supporting stable integration and optimized load transfer within the appliance structure.
The mounting structure is based on side fixation, providing secure positioning and compatibility with automated production processes.
Material & Surface Protection
The hinge body is manufactured from high-quality sheet metal and includes durable internal metal components.
Zn coating is applied to provide corrosion resistance under operating conditions and ensure long service life.
Assembly & Serviceability
The door connection system uses a wedge-type mounting geometry combined with a locking plate.
This structure enables reliable assembly, secure positioning, and practical service operations.
Low Noise & Smooth Operation
The hinge is designed for low-friction and low-noise operation, supporting controlled and consistent oven door movement.
Compliance & Production
Compliant with EU and US standards
Suitable for automated mass production
Applications
Built-in ovens
Freestanding ovens
Full glass door oven designs
