K19MW

K19MW
K19MW

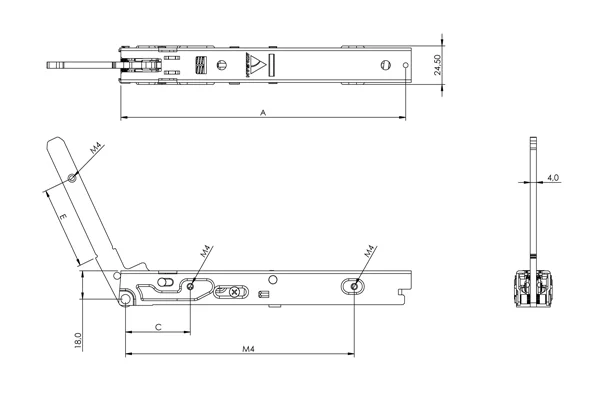

Technical Drawing

K19MW Teknik Çizim

Designed for microwave ovens, this model differs from standard hinge types with its long life cycle.



Technical Specifications

Door Weight 2,5 - 12 kg
Life Cycle Test 100.000 cycles
Maximum distance from pivot point to centre of gravity 230 mm
Opening Angle 85 °C
Operation Temperature 115 °C

Atasan Inc. (USA) — established in late 2024 — imports and distributes high-precision components from Atasan Metal Sanayi ve Ticaret A.S. (Turkey, est. 1995), serving OEMs worldwide, including GE Appliances and BSH Home Appliances.
