K21

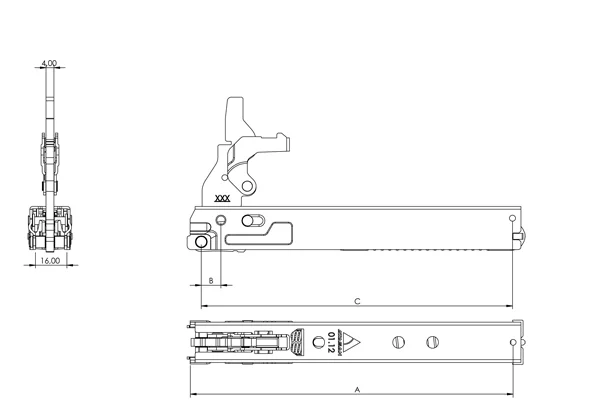

Technical Drawing

Developed with Atasan’s multi-optional design and production approach, the counter support mechanism can be adapted to any hinge type. As one of the special models of the company, this mechanism is the secret behind silently closed doors.

Technical Specifications

Door weight	2.5 - 10 kg
Life Cycle Test	20.000 Cycles
Maximum distance from pivot point to centre of gravity	230 mm
Opening Angle	85 °
Operation Temperature	115 °C
Maximum supported static load	25 kg
