Home Products Oven Hinges Standart K22

K22

K22
K22

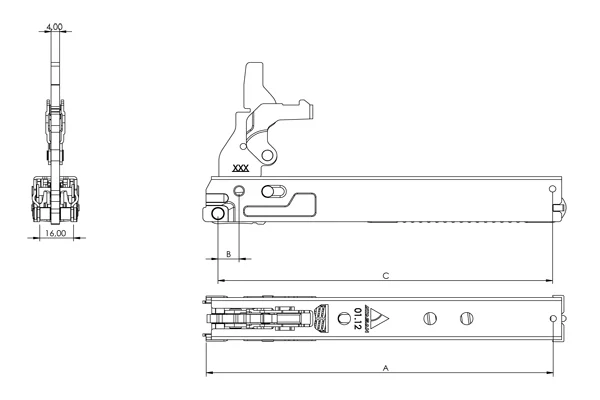

Technical Drawing

K22 Teknik Çizim

This model meets the needs of heavy doors with its short body and compression spring system

Technical Specifications

Door weight 2.5 - 12 kg
Life Cycle Test 20.000 Cycles
Maximum distance from pivot point to centre of gravity 230 mm
Opening Angle 85 °
Operation Temperature 115 °C
Maximum supported static load 25 kg
