K23 Short

K23 Short

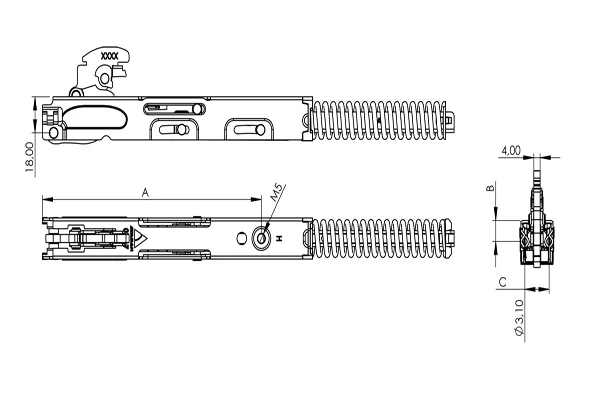

Technical Drawing

K23 Short Teknik Çizim

Based on creative research strategies, Atasan has brought the hinge body together with the damper group that provides soft closing on the door in a compact structure.



Technical Specifications

Door Weight 2.5 - 12 kg
Life Cycle Test 20.000 Cycles
Maximum distance from pivot point to centre of gravity 230 mm
Opening Angle 85 °
Operation Temperature 115 °C
Maximum supported static load 25 kg
