Mod94-Long

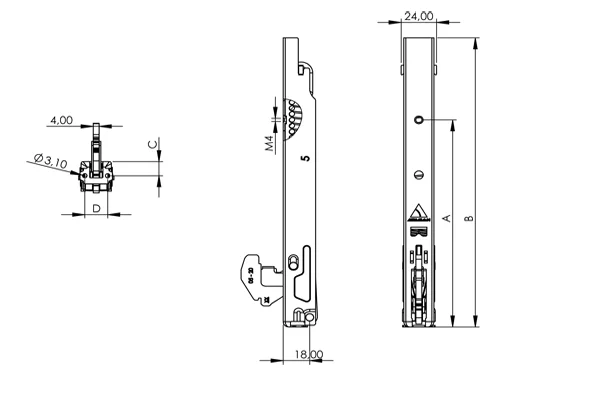

Technical Drawing

Ovens have various door weights depending on different designs. The Mod 94f type hinge has a friction system that allows balancing the door at different door weights.

Technical Specifications

Cover Weight	2.5 - 12 kg
Life Test	20,000 cycles
Maximum distance from the rotation axis to the center of gravity	230 mm
Opening Angle	86 °
Heat	115 °C
Maximum Static Load	25 kg
