Oven Door Hinges

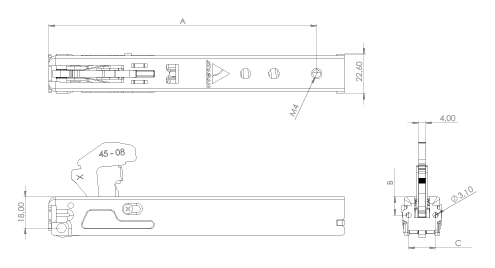

MOD 94

The Mod 94 oven door hinge has been developed for built-in and freestanding oven applications requiring balanced door operation across a broad range of door configurations. Combining a high-strength extension spring with an integrated friction mechanism, the hinge is designed to support controlled motion characteristics and stable door positioning throughout the operating range.

Door Weight

2.5 - 9 kg

Life Cycle Test

20,000 cycles

Distance from pivot point to center of gravity

230 mm

Opening angle

86°

Product details

Oven Door Hinges

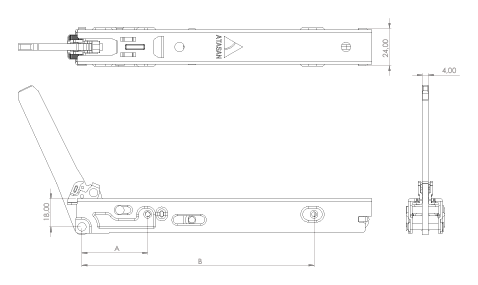

K19

The Atasan K19 oven door hinge has been developed for next-generation built-in oven platforms where aesthetics, user comfort, and mechanical performance are equally important. Designed specifically for full-glass oven doors, the K19 combines a long-arm architecture with an advanced spring balancing system to provide stable door operation across a wide range of door weights.

Door Weight

2.5 - 12 kg

Life Cycle Test

20,000 cycles

Distance from pivot point to center of gravity

230 mm

Opening angle

86°

Product details

Chest Freezer Hinges

D15

The Atasan D15 deep freezer hinge has been developed for chest freezer applications requiring reliable door balancing, controlled motion characteristics, and practical assembly solutions. Combining a patented locking mechanism with a specially engineered compression spring and friction-supported motion system, the hinge contributes to stable door operation throughout the product lifecycle. Its design supports ergonomic use while simplifying assembly and service processes.

Door Weight

max 15 kg

Life Cycle Test

30,000 - 50,000 cycles

Distance from pivot point to center of gravity

300 mm

Operation Temperature

5 - 40°C

Product details
