D15 - Chest Freezer Hinges
Developed for chest freezer doors with an innovative vision,this model includes easy and repeatable assembly & disassembly feature with its patented locking system and it fully meets customer’s functional expectations with
- Premium Industrial Quality
- OEM Compatible
- Reliable Worldwide Shipping
Overview

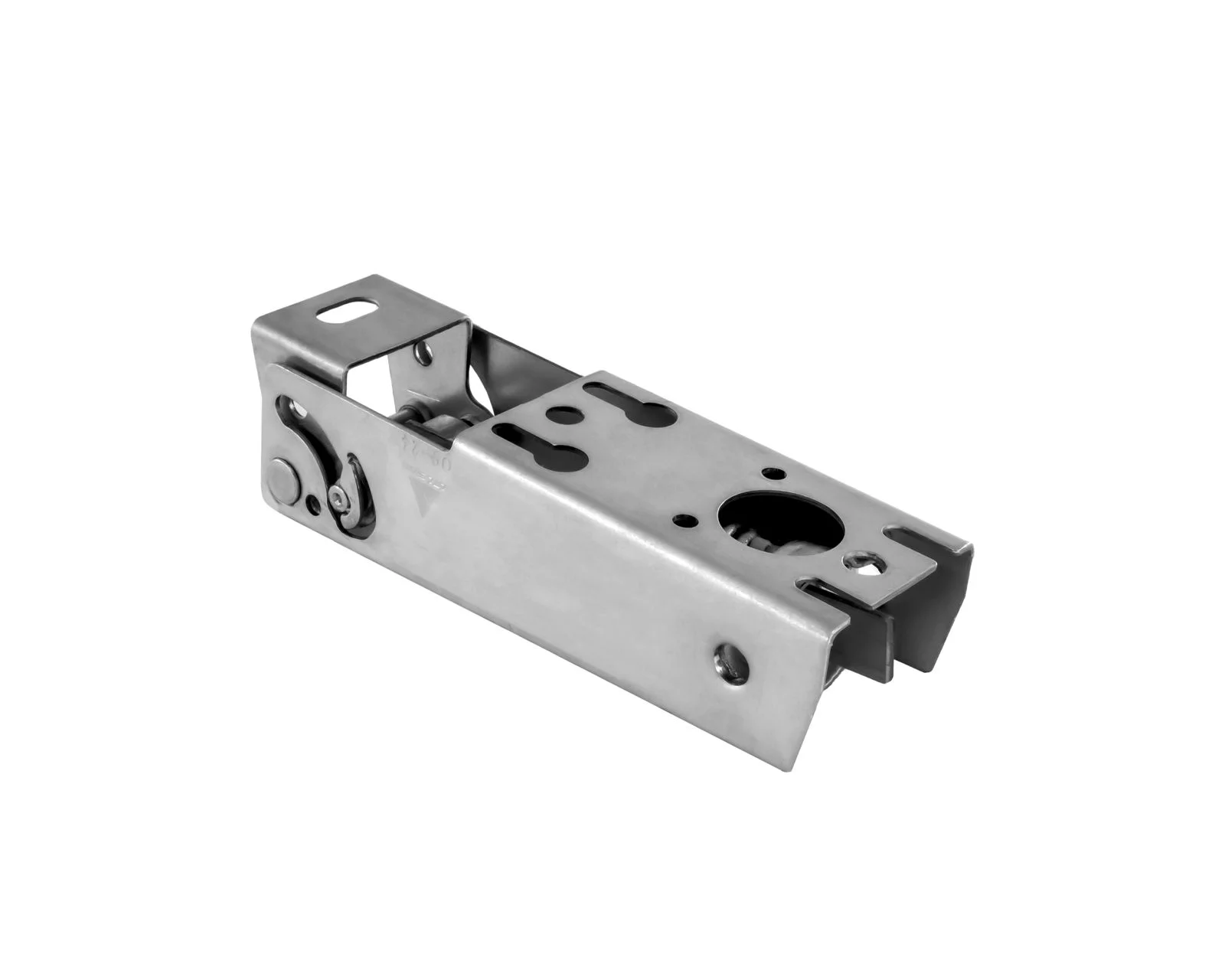

D15 Deep Freezer Hinge
Product Overview
The Atasan D15 deep freezer hinge has been developed for chest freezer applications requiring reliable door balancing, controlled motion characteristics, and practical assembly solutions.
Combining a patented locking mechanism with a specially engineered compression spring and friction-supported motion system, the hinge contributes to stable door operation throughout the product lifecycle. Its design supports ergonomic use while simplifying assembly and service processes.
Friction-Supported Motion System
The D15 incorporates a polymer-engineered friction mechanism integrated with a plastic bearing structure to support smooth and controlled door movement.
This system contributes to stable opening and closing characteristics while helping maintain consistent operating behavior across different door loads.
Spring & Balancing Mechanism
A specially designed compression spring provides door balancing throughout the operating range.
Developed through engineering analysis and research-based design methodologies, the spring system supports consistent mechanical performance while contributing to user comfort during operation.
Durability & Mechanical Design
The hinge utilizes high-strength sheet metal components designed to withstand the static and dynamic loads commonly encountered in chest freezer applications.
Advanced tribological design principles have been applied to hinge pins and bearing interfaces to support wear resistance and long-term mechanical stability.
Corrosion Protection
To support durability in humid operating environments, the hinge is protected with industrial coating systems developed in accordance with ASTM B117 corrosion testing requirements.
This surface protection contributes to maintaining both structural integrity and visual appearance throughout the product lifecycle.
Assembly & User-Friendly Design
The patented locking mechanism enables practical and repeatable assembly and disassembly operations.
Its installation-friendly structure supports efficient manufacturing processes while facilitating service and maintenance activities when required.
Safety Considerations
User safety has been incorporated into the hinge design through controlled geometry and manufacturing practices. Sharp edges and burrs are eliminated during production, while dimensional considerations are applied to support finger protection requirements. When used together with the protective plastic cover, the hinge system is suitable for appliance applications requiring enhanced user safety.
Applications
- -Chest freezers
- -Commercial freezers
- -Horizontal cooling equipment
- -Industrial refrigeration appliances
Availability
For sample testing and quick delivery, this product is also available on Amazon. This option allows engineers, distributors, and technical buyers to evaluate product compatibility before placing bulk orders.
For bulk orders, OEM partnerships, and customized solutions, please contact Atasan directly.
Technical Drawing
Detailed engineering schematic with all critical dimensions.
Specifications
Technical properties at a glance.
Technical Specifications
All values shown are nominal reference values and may vary depending on application conditions, installation methods, product configuration, and testing parameters.
Life cycle test results are based on internal testing under defined laboratory conditions and should not be interpreted as a guarantee of service life in any specific application.
Maximum load values are application-dependent and should be verified based on installation conditions, mounting configuration, and operating requirements.
Product Video
Frequently Asked Questions
The D15 hinge system is designed to support chest freezer doors with weights ranging from approximately 1.5 to 14 kg. Its internal mechanism, featuring a custom-engineered compression spring, can be adapted to help maintain balanced and stable door movement for different door weights and geometries within this specified range.
The hinge's durability is evaluated through life cycle testing under controlled laboratory conditions. Test programs may reference cycle counts, such as 50,000 to 150,000 cycles, as comparative benchmarks. These figures are engineering validation points and should not be interpreted as a service life guarantee in real-world applications.
The hinge is engineered for demanding applications using high-strength certified sheet metal steel to withstand static and dynamic loads. Its design incorporates tribological principles to reduce friction and wear, while a patented locking mechanism contributes to secure door positioning and stability over extended use, making it suitable for heavy-duty applications.
User safety is a key design consideration. During manufacturing, potentially hazardous elements like sharp edges and burrs are eliminated. The hinge's geometry is also designed following finger entrapment prevention principles, with internal gaps intentionally kept outside the typical 8 mm to 25 mm risk range to support safe interaction.
To address operation in humid environments, the hinge components are protected with industrial coating systems. These coatings are designed to meet corrosion resistance requirements, referencing standards such as ASTM B117. This approach aims to maintain the hinge's functional integrity and appearance in typical freezer operating conditions.
Mod D15 – Freezer Door Hinges
Compression Spring System with Integrated Friction and Locking Mechanism
This hinge combines a compression spring system with integrated friction and locking mechanisms.
The friction system supports door weight balancing and ensures controlled movement, while the integrated locking structure eliminates the need for additional components.
The design prevents contamination and jamming issues during operation, ensuring long-term reliability and safe usage.
Product information is provided for informational purposes only. Specifications, dimensions, materials, performance characteristics, and available configurations may change without notice. Final product suitability should be evaluated for each specific application.
