B18 (Appliance Door With Folded Metal Edge) - Built-in Refrigerator Hinges
Besides the long life cycle that highlights the design, B18 hinges performs opening and closing movement on built-in refrigerators with an elliptical orbit.
- Premium Industrial Quality
- OEM Compatible
- Reliable Worldwide Shipping
Overview
B18 Built-in Refrigerator Hinge
Product Overview
The Atasan B18 built-in refrigerator hinge has been developed for integrated refrigeration applications requiring high load capacity, controlled door movement, and compatibility with furniture door systems. Designed for built-in refrigerators and upright freezers, the B18 combines durability, functionality, and integration flexibility within a single hinge platform.
Its parabolic axis structure and optimized motion geometry support smooth and controlled door movement while maintaining compatibility with modern kitchen furniture systems.
Parabolic Axis Motion System
The B18 incorporates a specially engineered parabolic axis mechanism designed to support progressive and controlled door movement throughout the opening cycle.
This geometry helps reduce friction and mechanical stress during operation while improving compatibility with thicker decorative furniture panels.
Benefits
- -Smooth and progressive door movement
- -Controlled opening and closing characteristics
- -Reduced friction during operation
- -Improved compatibility with furniture systems
- -Stable motion under load
Assisted Closing & Gasket Support
The integrated spring mechanism provides assisted closing characteristics at lower opening angles.
This function helps support gasket engagement and contributes to maintaining door sealing performance while reducing the likelihood of incomplete door closure.
Features
- -Assisted automatic closing
- -Supports gasket compression
- -Controlled closing movement
- -Enhanced user convenience
Wide Opening & Safety Features
The hinge platform is designed to support convenient user access while maintaining stable operation.
Motion Characteristics
- -115° opening angle
- -90° stopper system
- -Controlled free movement after 45°
- -Stable and predictable door behavior
The stopper system helps limit excessive door travel in applications installed close to adjacent cabinetry or walls.
High Load Capacity & Structural Strength
The B18 has been developed for demanding refrigeration applications involving heavy appliance and furniture door combinations.
Its reinforced construction utilizes high-quality cold-rolled sheet metal, precision axis geometries, and durable structural components designed to support long-term operation under load.
Corrosion Resistance & Surface Protection
The hinge incorporates zinc-coated components developed for kitchen and refrigeration environments.
This surface treatment supports corrosion resistance and helps maintain long-term appearance and durability in humid operating conditions.
Furniture System Compatibility
The B18 is engineered for seamless integration with built-in refrigeration systems and furniture doors.
Compatibility Features
- -18–19 mm standard furniture panels
- -Compatible with 16 mm panels using spacers
- -41.5 mm and 45 mm mounting depths
- -Compatible with various door constructions
- -Ergonomic installation structure
Durability & Life Cycle Performance
The B18 platform undergoes internal validation and endurance testing programs designed to evaluate performance under representative operating conditions.
Depending on configuration, tested versions have achieved performance references ranging from 50,000 to 100,000 opening and closing cycles.
OEM Integration & Manufacturing
The hinge platform has been developed to support appliance manufacturers requiring flexibility, durability, and efficient production integration.
Its design supports compatibility with automated manufacturing processes and a wide variety of refrigeration platforms.
Applications
- -Built-in refrigerators
- -Upright freezers
- -Furniture-integrated cooling systems
- -Premium kitchen appliances
- -OEM white goods applications

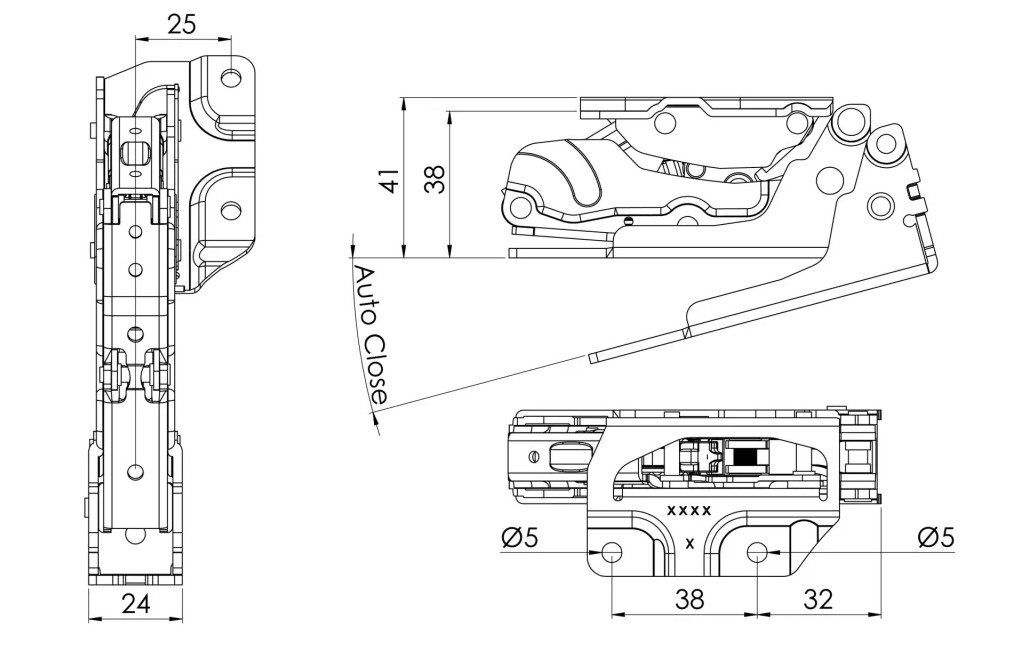

Technical Drawing
Detailed engineering schematic with all critical dimensions.
Specifications
Technical properties at a glance.
Technical Specifications
All values shown are nominal reference values and may vary depending on application conditions, installation methods, product configuration, and testing parameters.
Life cycle test results are based on internal testing under defined laboratory conditions and should not be interpreted as a guarantee of service life in any specific application.
Maximum load values are application-dependent and should be verified based on installation conditions, mounting configuration, and operating requirements.
Frequently Asked Questions
The B18 hinge is engineered for heavy integrated refrigerator doors, with configurations supporting weights up to 70 kg (154 lbs). Its design ensures stable performance for applications with a center of gravity up to 300 mm from the pivot point, easily accommodating large custom furniture panels.
This hinge is designed for long-term reliability in high-use applications. It has undergone life cycle testing with reference points between 100,000 and 300,000 cycles. This evaluation confirms its ability to provide consistent mechanical performance and door alignment throughout the expected service life of the appliance.
The B18 hinge is designed to operate reliably within a standard indoor temperature range of 5°C to 40°C (41°F to 104°F). Its materials and mechanical design are optimized for consistent performance in typical kitchen environments where built-in refrigerators and freezers are installed.
The B18 is specifically engineered for high-end, integrated refrigerator and freezer applications. It connects the appliance door to an external furniture panel, enabling a seamless look. Its robust structure is ideal for supporting heavy custom panels while ensuring smooth, controlled motion and reliable alignment in modern kitchens.
The B18 hinge system provides controlled motion for a premium user experience. It supports opening angles up to approximately 115 degrees and features self-closing behavior at lower angles to ensure a proper seal. This helps maintain energy efficiency and provides consistent, predictable movement for heavy integrated panels.
Why B18?
-Parabolic axis motion technology
-High load capacity up to 60 kg
-Assisted automatic closing system
-Supports gasket engagement
-115° wide opening angle
-90° stopper functionality
-Furniture system compatibility
-High corrosion resistance
-Up to 100,000 cycle performance references
-Ergonomic and quick installation structure
Product information is provided for informational purposes only. Specifications, dimensions, materials, performance characteristics, and available configurations may change without notice. Final product suitability should be evaluated for each specific application.
