K19 Oven Door Hinge
Product Overview

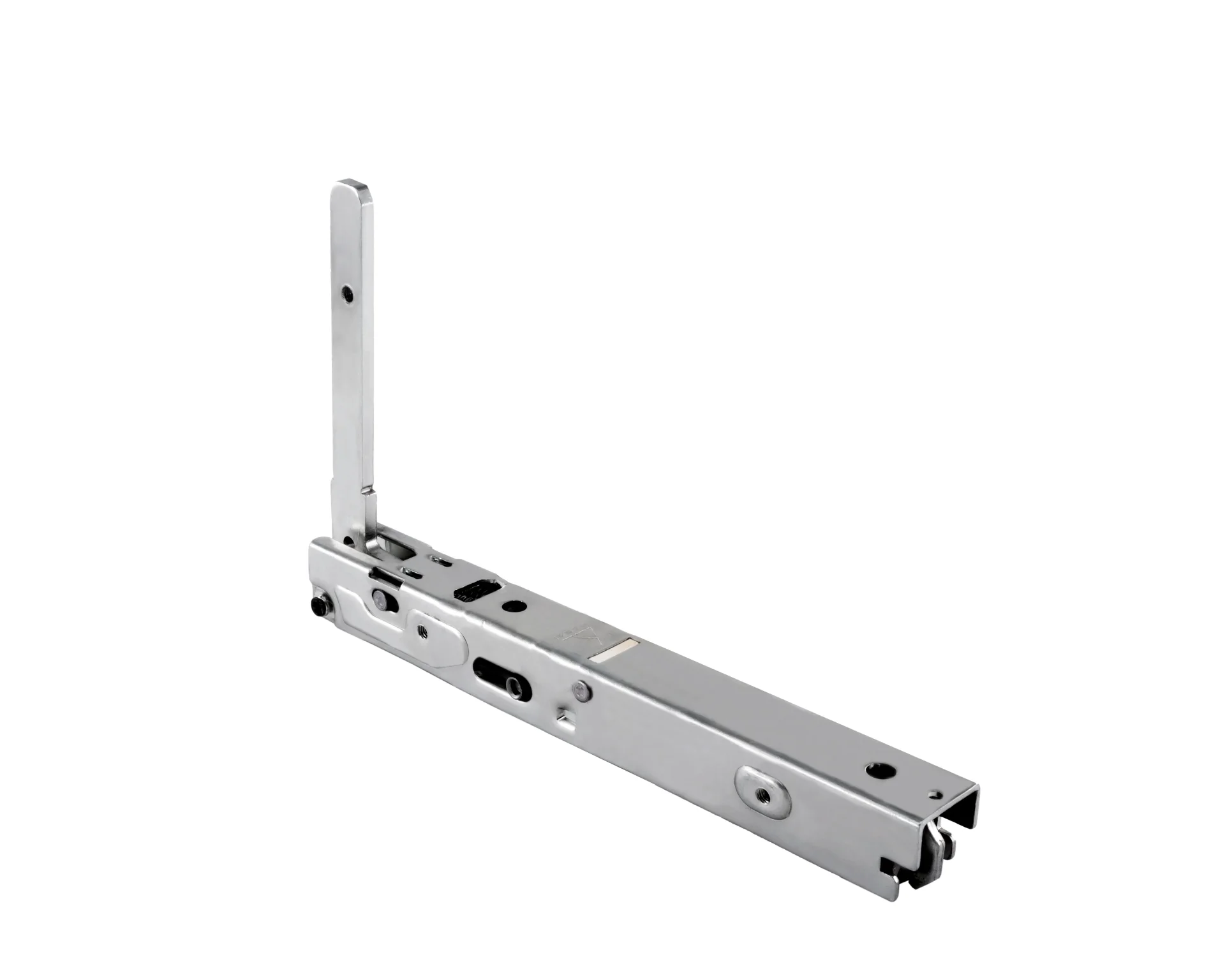

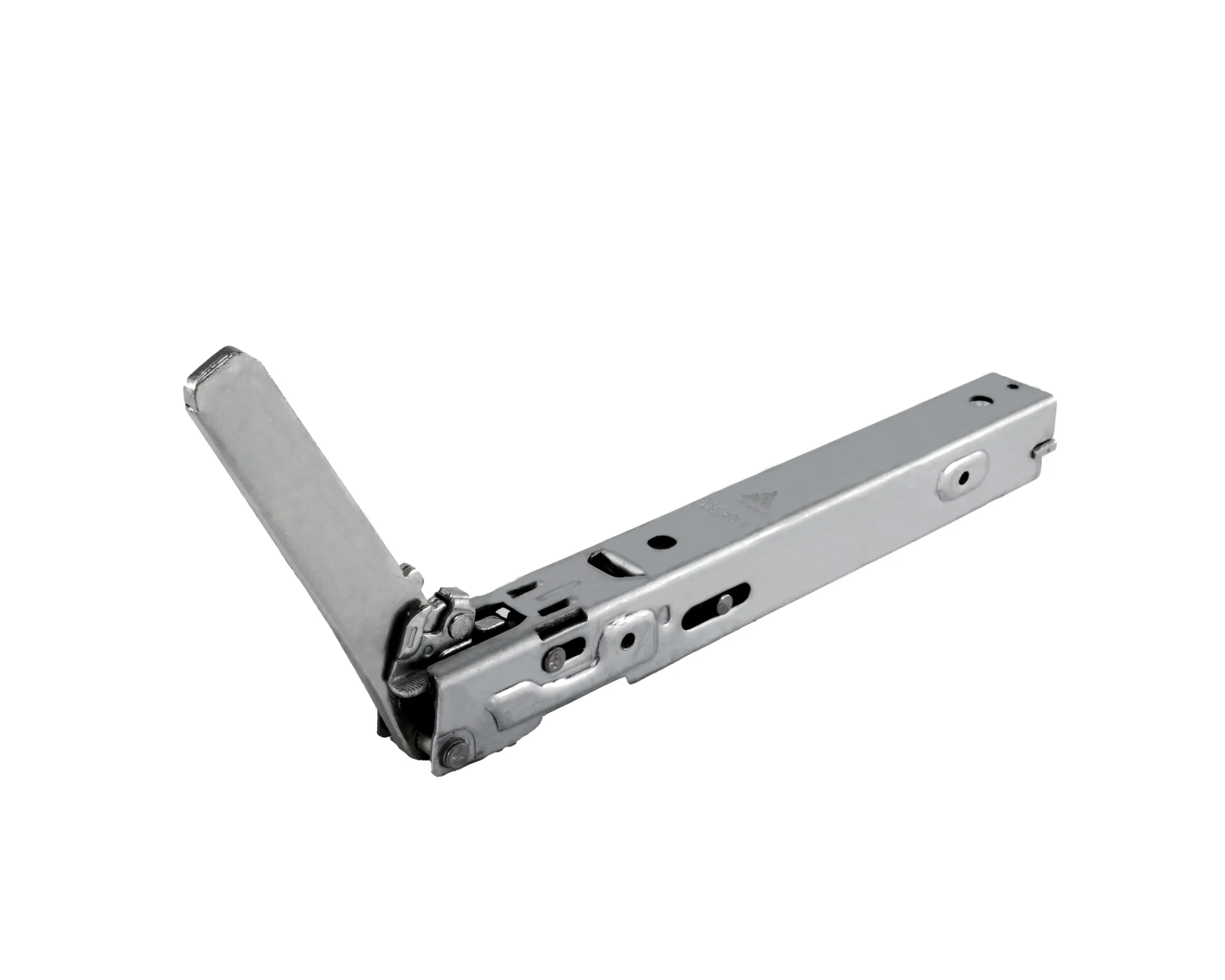

The Atasan K19 oven door hinge has been developed for next-generation built-in oven platforms where aesthetics, user comfort, and mechanical performance are equally important. Designed specifically for full-glass oven doors, the K19 combines a long-arm architecture with an advanced spring balancing system to provide stable door operation across a wide range of door weights.
Its horizontal chassis-mounted configuration allows efficient load transfer while supporting modern appliance designs that prioritize both appearance and functionality.
Full Glass Door Compatibility
The K19 hinge is optimized for full-glass oven door applications, eliminating the need for glass cut-outs around the hinge area.
This configuration supports cleaner product aesthetics while simplifying glass processing and manufacturing operations. The long-arm design also improves leverage and load distribution, making it suitable for larger and heavier door constructions.
Benefits
- -Full-glass door compatibility
- -Improved product aesthetics
- -Reduced glass processing requirements
- -Simplified manufacturing process
Low-Friction Motion Technology
Advanced tribological surfaces and optimized contact structures have been incorporated into the K19 design to support smooth and controlled door movement.
The low-friction operating characteristic contributes to reduced noise levels and a refined user experience, making the hinge particularly suitable for premium built-in oven applications.
Flexible Spring & Balancing System
The K19 utilizes a multi-combination tension spring system with adjustable spring force characteristics.
A wide range of spring combinations allows the hinge to be adapted to different door weights while achieving the desired balancing and torque characteristics. This flexibility enables manufacturers to use a common hinge platform across multiple oven models.
Structural Strength & Reliability
The hinge body is manufactured from high-quality sheet metal and reinforced with durable internal metal components.
Its structural design is intended to withstand both static and dynamic loads commonly encountered during appliance operation, contributing to long-term mechanical stability.
The horizontal mounting position combined with side fixation supports optimized load transfer between the oven chassis and door system.
Corrosion Protection
The K19 is protected with Zn coating technology developed for demanding appliance environments.
This surface treatment contributes to corrosion resistance in humid and elevated-temperature conditions while supporting long-term durability and appearance retention.
Assembly & Production Advantages
The door connection system utilizes a specially designed wedge mechanism combined with a locking plate.
This structure supports fast assembly, secure positioning, and practical service operations while remaining suitable for automated production environments.
Production Benefits
- -Fast assembly process
- -Secure door positioning
- -Flexible production integration
- -Suitable for automated manufacturing
Applications
- -Built-in ovens
- -Full-glass oven designs
- -Premium home appliances
- -OEM appliance manufacturing

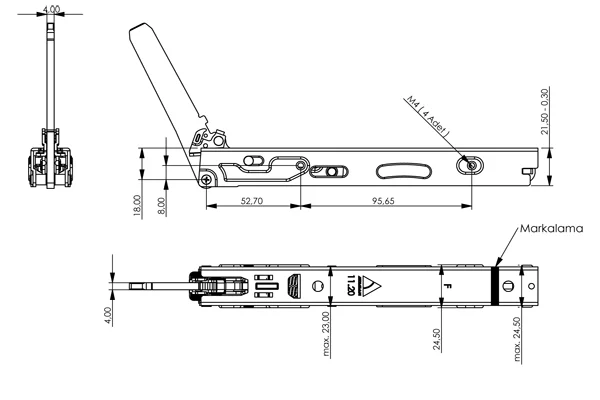

Technical Drawing
Detailed engineering schematic with all critical dimensions.
Specifications
Technical properties at a glance.
Technical Specifications
All values shown are nominal reference values and may vary depending on application conditions, installation methods, product configuration, and testing parameters.
Life cycle test results are based on internal testing under defined laboratory conditions and should not be interpreted as a guarantee of service life in any specific application.
Maximum load values are application-dependent and should be verified based on installation conditions, mounting configuration, and operating requirements.
Frequently Asked Questions
The K19 hinge is engineered to support oven doors with weights typically ranging from 2.5 kg to 12 kg. This range allows it to accommodate various door designs and glass configurations while aiming to maintain controlled motion and balance across its intended operational scope.
The K19 hinge has undergone life cycle testing for 20,000 cycles under controlled laboratory conditions. This evaluation serves as an engineering benchmark to assess its mechanical behavior over repeated use, helping to validate its design for typical residential appliance application requirements.
This hinge system is designed with materials selected for thermal stability, intended for use in operating temperatures up to 115°C. This characteristic helps the mechanism maintain its functional performance when exposed to the elevated ambient temperatures commonly found in oven applications.
The K19 hinge is designed to allow for a maximum door opening angle of approximately 86 degrees. This specific geometry provides sufficient access to the oven cavity for typical cooking and cleaning tasks while helping to manage the door's movement within a controlled and stable range.
The K19 hinge is designed for applications where the door's center of gravity is up to 230 mm from the pivot point. It has also been evaluated to support a maximum static load of 35 kg, providing a reference for its structural integrity under stationary load conditions.
The body of new generation hinges is now on the frame. With this model which is designed from solid glass and in which the “soft close” mechanism is used, Atasan offers an alternative product that combines practicality with a modern style.
Why K19?
-Full-glass door compatibility
-Low-friction and quiet operation
-Flexible balancing characteristics
-High structural strength
-Fast and secure assembly
-Corrosion-resistant construction
-Compliance with EU and US market requirements
