K21 Standard - Oven Hinges
The K21 standard oven hinge delivers dependable counterbalance support and smooth, controlled door movement for high-volume OEM appliance production. Engineered for durability and consistent performance across high open-close cycles.
- Premium Industrial Quality
- OEM Compatible
- Reliable Worldwide Shipping
Overview
K21 Standard Oven Hinge
Product Overview
The Atasan K21 standard oven hinge has been developed as a versatile counterbalance mechanism for a wide range of built-in and freestanding oven applications. Designed around a flexible platform architecture, the system can be adapted to different door configurations while maintaining consistent motion characteristics and stable door positioning.
As one of Atasan's specialized hinge solutions, the K21 supports smooth and controlled door movement, making it suitable for appliance platforms requiring reliable operation and efficient integration.
Counterbalance Mechanism
The K21 incorporates a cam and spring-based balancing system engineered to manage the static moment generated by the oven door throughout its operating range.
This mechanism contributes to balanced opening and closing characteristics while supporting stable door positioning at various operating angles. The platform can be adapted to different door weights through appropriate spring force selection, allowing a common hinge solution to be utilized across multiple appliance models.
Flexible Platform Design
Developed with Atasan's multi-optional design approach, the K21 can be configured for various oven platforms and door geometries.
Its adaptable architecture supports efficient component standardization, helping manufacturers simplify sourcing, inventory management, and production processes while maintaining compatibility with different product families.
Structural Strength & Thermal Performance
The hinge is manufactured from precision-stamped steel components designed to provide structural integrity and consistent mechanical performance.
Suitable for demanding appliance environments, the K21 is developed for operating temperatures of up to 115°C. Material selection, coating technology, and manufacturing controls contribute to maintaining stable operating characteristics under repeated thermal exposure.
The structure is designed to support maximum static loads of up to 25 kg, depending on the application configuration.
Durability & Life Cycle Performance
The K21 design has been evaluated through controlled life cycle testing programs to assess motion consistency and mechanical behavior under repeated use conditions.
Testing has been conducted at ≥20,000 opening and closing cycles, providing a reference point for product validation and engineering evaluation.
Quiet & Controlled Operation
The geometry of the balancing system is designed to support controlled door movement while contributing to reduced operating noise.
Its motion characteristics make the hinge suitable for applications where stable operation and user comfort are important considerations.
Manufacturing & Integration
The K21 has been developed with production efficiency in mind, allowing integration into a variety of oven platforms.
Its adaptable design supports streamlined assembly processes and compatibility with modern manufacturing environments.
Applications
- -Built-in ovens
- -Freestanding ovens
- -Residential cooking appliances
- -OEM appliance manufacturing

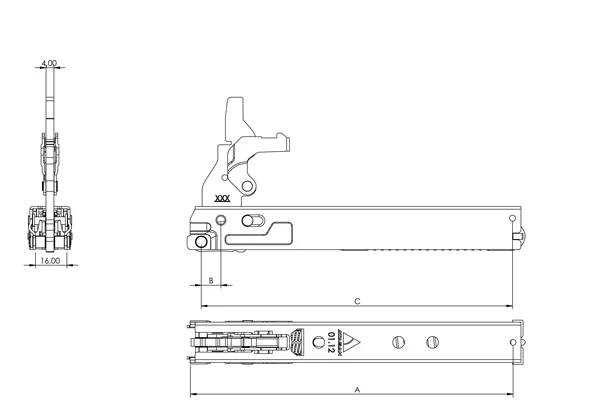

Technical Drawing
Detailed engineering schematic with all critical dimensions.
Specifications
Technical properties at a glance.
Technical Specifications
All values shown are nominal reference values and may vary depending on application conditions, installation methods, product configuration, and testing parameters.
Life cycle test results are based on internal testing under defined laboratory conditions and should not be interpreted as a guarantee of service life in any specific application.
Maximum load values are application-dependent and should be verified based on installation conditions, mounting configuration, and operating requirements.
Frequently Asked Questions
The K21 Standard hinge is engineered to support oven doors with weights ranging from 2.5 kg to 12 kg. Its counterbalance system is designed to provide stable motion and positioning for doors within this specified class, making it suitable for a variety of standard domestic oven applications.
The K21 hinge's mechanical durability has been evaluated in life cycle testing. Under defined laboratory conditions, the hinge was subjected to 20,000 opening and closing cycles. This testing provides engineering data on its performance over repeated use, rather than representing a guaranteed service life in all applications.
Yes, this hinge is intended for oven applications. It is constructed with materials selected to operate in thermal conditions up to 115°C (239°F). This design approach aims to support consistent mechanical performance and material stability when exposed to the heat generated during typical cooking cycles.
The K21 hinge system is designed to allow the oven door to open to a maximum angle of 86 degrees. This angle provides sufficient access to the oven cavity for typical use while helping to prevent the door from overextending or impacting adjacent cabinetry in common kitchen installations.
The K21 hinge is designed to support a maximum static load of 25 kg. This specification refers to the load the hinge can bear in a fixed, non-moving position, which contributes to the structural integrity of the door assembly when installed according to manufacturer guidelines.
Why K21?
-Adaptable counterbalance platform
-Suitable for multiple oven configurations
-Stable door positioning
-Controlled motion characteristics
-High-temperature operating capability
-Efficient OEM integration
-Simplified component standardization
Product information is provided for informational purposes only. Specifications, dimensions, materials, performance characteristics, and available configurations may change without notice. Final product suitability should be evaluated for each specific application.
