K20 - Oven Hinges
The body of new generation hinges is now on the frame. With this model which is designed from solid glass and in which the “soft close” mechanism is used, Atasan offers an option that combines practicality with a stylish look.
- Premium Industrial Quality
- OEM Compatible
- Reliable Worldwide Shipping
Overview
K20 Soft Close & Soft Open Oven Door Hinge
Product Overview
The Atasan K20 oven door hinge has been developed for premium built-in oven applications where motion quality, user comfort, and modern design are key product requirements. Combining an integrated damper system with a spring-assisted balancing mechanism, the K20 provides both soft opening and soft closing functionality within a single hinge platform.
Its long-arm architecture is particularly suitable for full-glass oven door designs, supporting a clean appearance while delivering controlled and refined door movement.
Soft Open & Soft Close Technology
The K20 incorporates an integrated damping system designed to manage door movement during both opening and closing operations.
The soft-close function contributes to controlled deceleration during closing, while the soft-open feature assists the initial opening movement to create a balanced and comfortable user interaction. Together, these functions support smooth door operation throughout the entire movement cycle.
Motion Control Features
- -Soft closing functionality
- -Soft opening assistance
- -Controlled door movement
- -Reduced closing impact
- -Low-noise operation
Integrated Damper System
The hinge utilizes a specially engineered damping mechanism designed to regulate motion characteristics and support a consistent operating feel.
The system manages kinetic energy throughout door movement, contributing to smooth transitions between opening and closing phases while enhancing overall user comfort.
Full Glass Door Compatibility
The K20 has been developed for modern full-glass oven door applications.
Its long-arm configuration allows the hinge body to be positioned on the chassis, eliminating the need for glass cut-outs around the hinge area. This architecture supports cleaner product aesthetics and greater design flexibility.
Benefits
- -Full-glass door compatibility
- -Improved product appearance
- -Reduced glass processing requirements
- -Modern appliance styling
- -Suitable for premium oven platforms
Spring-Assisted Balancing System
The hinge incorporates a spring-supported balancing mechanism designed to manage door loads throughout the operating range.
This system contributes to stable door positioning and balanced opening and closing characteristics while allowing compatibility with different oven door configurations.
Structural Strength & Thermal Performance
The K20 is manufactured from durable metal components designed for demanding appliance environments.
Suitable for operating temperatures of up to 115°C, the hinge is developed to maintain consistent motion characteristics under repeated thermal exposure. Its structure is designed to support static loads of up to 25 kg depending on the application.
Durability & Life Cycle Performance
The hinge series has been evaluated through structured life cycle testing programs designed to assess mechanical behavior under repeated use conditions.
Testing references include ≥20,000 opening and closing cycles, providing an engineering benchmark for durability evaluation and product validation.
Assembly & Integration
The K20 is designed for efficient integration into modern appliance manufacturing processes.
Its architecture supports reliable installation while maintaining compatibility with automated production environments and high-volume manufacturing requirements.
Applications
- -Built-in ovens
- -Full-glass oven designs
- -Premium home appliances
- -Soft motion oven systems
- -OEM appliance manufacturing

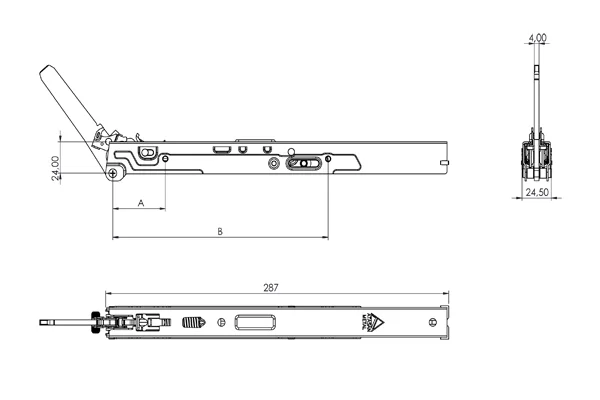

Technical Drawing
Detailed engineering schematic with all critical dimensions.
Specifications
Technical properties at a glance.
Technical Specifications
All values shown are nominal reference values and may vary depending on application conditions, installation methods, product configuration, and testing parameters.
Life cycle test results are based on internal testing under defined laboratory conditions and should not be interpreted as a guarantee of service life in any specific application.
Maximum load values are application-dependent and should be verified based on installation conditions, mounting configuration, and operating requirements.
Frequently Asked Questions
The K20 hinge system is engineered to support oven doors with a weight range of approximately 2.5 to 10 kg. This design helps maintain controlled soft-close and soft-open motion for doors within this specified range, contributing to a consistent user experience in suitable appliance applications.
This hinge system is developed to operate in thermal conditions up to 115°C (239°F). The materials and damping solutions are selected to support consistent motion behavior in thermally demanding environments typical of oven applications, aiming for reliable performance under repeated heat exposure.
The K20 model is designed with a maximum opening angle of approximately 86 degrees. This specific geometry helps ensure controlled movement and stable positioning within its intended operational range. The design is suitable for many standard oven configurations where this angle provides sufficient access to the oven cavity.
The K20 hinge has undergone life cycle testing as a comparative benchmark, referencing 20,000 cycles under defined laboratory conditions. This testing is part of the engineering validation process to evaluate mechanical consistency and motion behavior over repeated use, rather than representing a service life guarantee.
The K20 hinge is designed for applications where the door's center of gravity is up to 230 mm from the pivot point. It has also been evaluated to support a maximum static load of 25 kg. These parameters are important for matching the hinge's counterbalance characteristics to the door's geometry.
Why K20?
-Soft open and soft close functionality
-Integrated damping technology
-Full-glass door compatibility
-Long-arm chassis-mounted architecture
-Controlled and quiet operation
-Premium user experience
-High-temperature operating capability
-Suitable for premium appliance platforms
Product information is provided for informational purposes only. Specifications, dimensions, materials, performance characteristics, and available configurations may change without notice. Final product suitability should be evaluated for each specific application.
