K21 Soft-Close - Oven Hinges
The K21 soft-close oven hinge integrates a damped counter-support mechanism that brings the door to a silent, controlled stop. Built for premium OEM appliances where refined door feel and high-cycle reliability matter.
- Premium Industrial Quality
- OEM Compatible
- Reliable Worldwide Shipping
Overview
K21 Soft Close Oven Door Hinge
Product Overview
The Atasan K21 Soft Close oven hinge has been developed for oven applications requiring enhanced motion quality, controlled door movement, and improved user comfort. Combining a counterbalance mechanism with an integrated damping system, the hinge supports both soft opening and soft closing functionality within a compact and adaptable platform.
Developed using Atasan's multi-optional design approach, the system can be configured for different appliance platforms while maintaining consistent motion characteristics and stable door positioning.
Soft Open & Soft Close Technology
The K21 Soft Close incorporates an integrated damper mechanism designed to manage door movement during both opening and closing operations.
During closing, the damping system regulates door speed to support smooth and controlled movement. During opening, the system provides balanced assistance to create a refined and comfortable user interaction.
Motion Control Features
- -Soft closing functionality
- -Soft opening assistance
- -Controlled door movement
- -Reduced impact during operation
- -Low-noise performance
Integrated Damping System
The hinge utilizes a dedicated damping unit designed to regulate kinetic energy throughout the movement cycle.
The interaction between the spring mechanism and damping elements contributes to balanced motion characteristics across different operating conditions while supporting a consistent user experience.
Optional soft-closing functionality can be adapted according to project requirements.
Flexible Counterbalance Platform
The K21 Soft Close is based on a counterbalance mechanism that can be adapted to various oven door configurations.
Supporting door weights between 2.5 and 9 kg, the system accommodates a wide range of appliance platforms while allowing manufacturers to utilize a common hinge architecture across multiple models.
Benefits
- -Flexible platform integration
- -Adaptable to different door constructions
- -Simplified component management
- -Suitable for multiple appliance variants
Stable Motion & Door Positioning
The internal geometry combines spring and damping technologies to support stable door positioning throughout the operating range.
Its motion characteristics contribute to controlled opening and closing behavior while maintaining a predictable operating feel across supported door weights.
Structural Strength & Thermal Performance
The hinge is manufactured from durable metal components designed for demanding appliance environments.
Suitable for operating temperatures of up to 115°C, the K21 Soft Close is developed to maintain consistent operating characteristics under repeated thermal exposure. Its structure is designed to support static loads of up to 25 kg depending on the application.
Durability & Life Cycle Performance
The hinge design has been evaluated through structured life cycle testing programs designed to assess mechanical behavior under repeated use conditions.
Testing references include ≥20,000 opening and closing cycles, providing an engineering benchmark for product validation and durability evaluation.
OEM Integration & Manufacturing
The K21 Soft Close has been developed to support efficient integration into modern appliance production environments.
Its adaptable platform architecture supports streamlined assembly processes while maintaining compatibility with high-volume manufacturing requirements.
Applications
- -Built-in ovens
- -Freestanding ovens
- -Premium home appliances
- -Soft motion oven systems
- -OEM appliance manufacturing

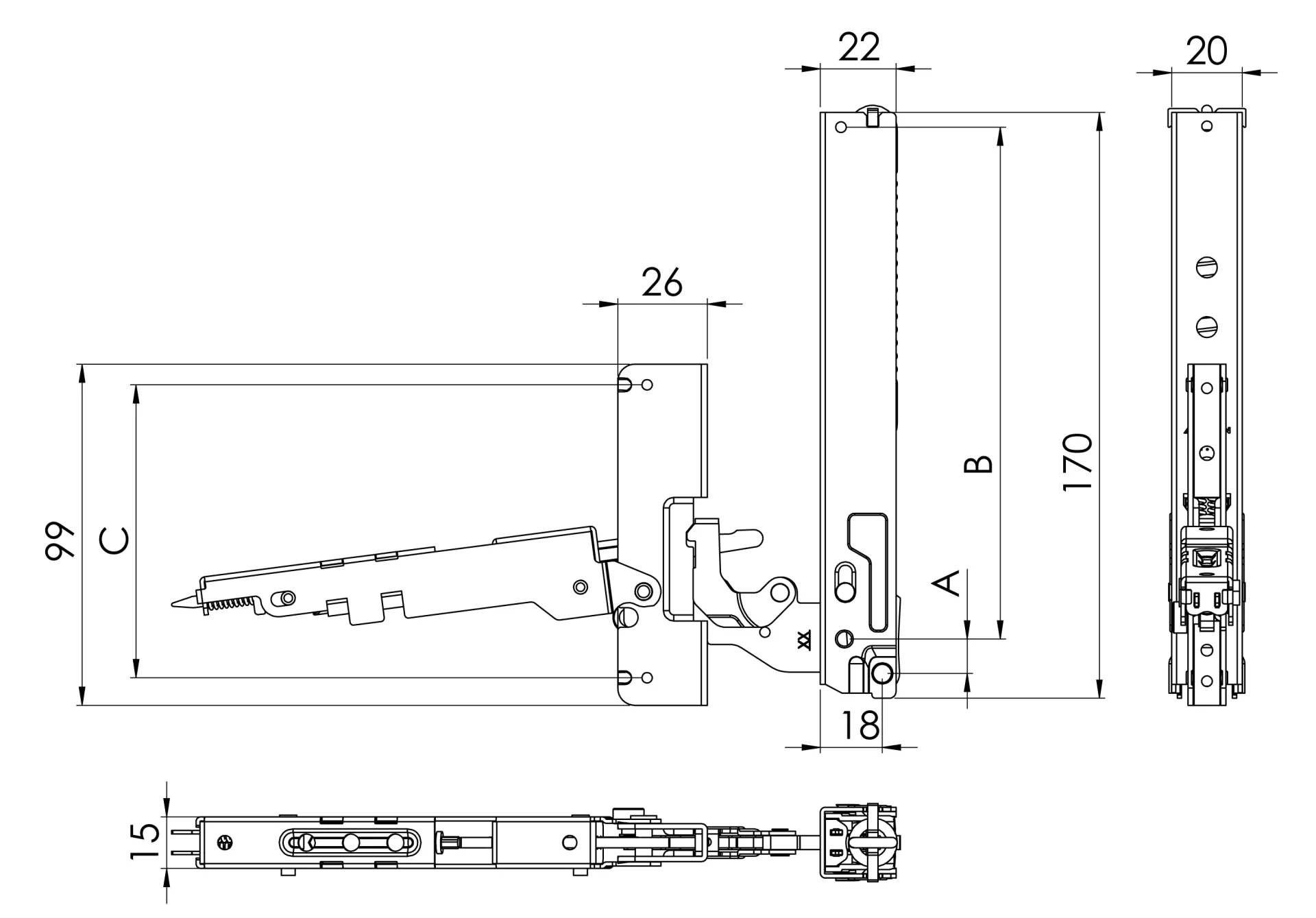

Technical Drawing
Detailed engineering schematic with all critical dimensions.
Specifications
Technical properties at a glance.
Technical Specifications
All values shown are nominal reference values and may vary depending on application conditions, installation methods, product configuration, and testing parameters.
Life cycle test results are based on internal testing under defined laboratory conditions and should not be interpreted as a guarantee of service life in any specific application.
Maximum load values are application-dependent and should be verified based on installation conditions, mounting configuration, and operating requirements.
Frequently Asked Questions
The K21 hinge is designed to support oven doors with a weight range of 2.5 kg to 10 kg. It is developed for applications where the door's center of gravity is up to 230 mm from the pivot point, aiming to provide controlled and balanced motion.
The K21's soft-close system, including its internal damper, is engineered to operate in thermal conditions up to 115°C. This design aims to maintain consistent motion control and reduce closing impact, even within the demanding thermal environments typical of oven applications.
The K21 hinge is designed with a maximum opening angle of 86 degrees. The mechanism is engineered to support stable door positioning when fully open, contributing to user convenience and safety during oven use without requiring a separate grill position functionality.
The K21 hinge's durability is evaluated using life cycle testing under defined laboratory conditions, with 20,000 cycles serving as a test reference point. This process is used for engineering validation to assess performance over repeated use, rather than as a service life guarantee.
The K21 hinge system is designed to support a maximum static load of 25 kg. This specification relates to the structural capacity of the hinge when the oven door is in a stationary, fully open position, contributing to the overall stability of the door assembly.
Why K21 Soft Close?
-Soft open and soft close functionality
-Integrated damping technology
-Flexible counterbalance platform
-Quiet and controlled operation
-Stable door positioning
-High-temperature operating capability
-Adaptable to multiple oven configurations
-Suitable for premium appliance platforms
Product information is provided for informational purposes only. Specifications, dimensions, materials, performance characteristics, and available configurations may change without notice. Final product suitability should be evaluated for each specific application.
