K19MW - Microwave Hinges
Designed for microwave oven doors, the K19MW provides controlled door movement within a compact structure. Its versatile design supports a wide range of door configurations and appliance platforms.
- Premium Industrial Quality
- OEM Compatible
- Reliable Worldwide Shipping
Overview
K19MW Microwave Oven Door Hinge
Product Overview
The Atasan K19MW hinge has been developed specifically for microwave oven door applications requiring controlled motion, compact integration, and reliable performance. Designed to accommodate a wide range of door configurations, the hinge supports stable door movement while maintaining compatibility with modern microwave oven platforms.
Its compact architecture and balanced spring system make it suitable for applications where space efficiency and consistent operation are important design considerations.
Motion Control & Door Balancing
The K19MW utilizes a spring-assisted balancing mechanism designed to support controlled door movement throughout the operating range.
Its geometry is developed to manage door loads effectively, contributing to predictable opening and closing characteristics while supporting stable intermediate door positions.
Benefits
- -Controlled door movement
- -Stable positioning characteristics
- -Balanced opening and closing behavior
- -Suitable for various door configurations
- -Consistent user interaction
Flexible Door Compatibility
The hinge is designed to support a broad range of microwave oven door constructions.
Its operating characteristics accommodate door weights between 2.5 and 12 kg and support applications with a center of gravity distance of up to 230 mm from the pivot point.
This flexibility enables manufacturers to utilize a common hinge platform across multiple appliance models.
Structural Strength & Thermal Performance
Manufactured from precision-formed steel components, the K19MW is designed for appliance environments requiring reliable mechanical performance.
Suitable for operating temperatures of up to 115°C, the hinge is developed to maintain stable operating characteristics under repeated thermal exposure.
Durability & Life Cycle Performance
The K19MW has been evaluated through structured life cycle testing programs designed to assess mechanical behavior under repeated use conditions.
Testing references include up to 100,000 opening and closing cycles, providing an engineering benchmark for durability evaluation and product validation.
OEM Integration & Manufacturing
The hinge is designed to support efficient integration into microwave oven production environments.
Its compact construction and optimized mounting geometry contribute to straightforward assembly and compatibility with high-volume manufacturing processes.
Applications
- -Microwave ovens
- -Compact cooking appliances
- -OEM appliance manufacturing

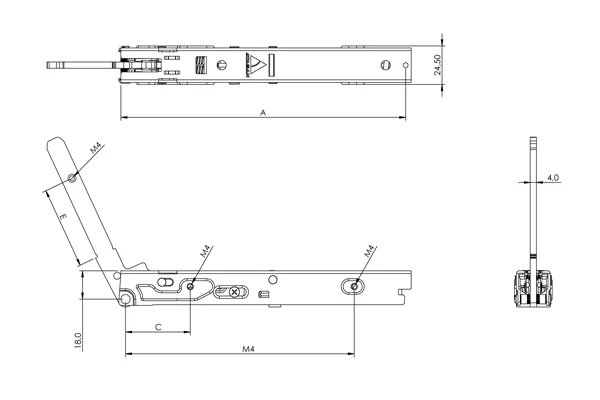

Technical Drawing
Detailed engineering schematic with all critical dimensions.
Specifications
Technical properties at a glance.
Technical Specifications
All values shown are nominal reference values and may vary depending on application conditions, installation methods, product configuration, and testing parameters.
Life cycle test results are based on internal testing under defined laboratory conditions and should not be interpreted as a guarantee of service life in any specific application.
Maximum load values are application-dependent and should be verified based on installation conditions, mounting configuration, and operating requirements.
Frequently Asked Questions
The K19MW hinge is designed to support microwave doors with a weight ranging from 2.5 to 12 kg. This range allows it to be used in various appliance designs, helping to maintain controlled motion and stable positioning for doors that fall within these specified weight parameters.
The K19MW hinge has been evaluated in life cycle tests referencing 100,000 cycles under defined laboratory conditions. This testing is conducted to assess its mechanical behavior and durability over repeated use, supporting its suitability for high-frequency applications. Test results are for engineering comparison, not a service life guarantee.
Yes, the K19MW hinge is engineered to operate in thermal environments up to 115°C (239°F). Its materials are selected to support functional stability under elevated temperatures common in compact cooking appliances, contributing to consistent mechanical behavior over repeated use.
The K19MW hinge is designed with a specific opening angle of approximately 86 degrees. This defined angle helps control the door's travel path, which can prevent over-extension and potential interference with adjacent cabinetry or countertops in typical kitchen installations, supporting predictable user interaction.
This hinge is designed primarily for microwave and compact cooking appliance doors. Its specifications, including support for door weights from 2.5 to 12 kg and an operating temperature tolerance of up to 115°C, make it a suitable component for OEM applications where controlled motion and thermal stability are required.
Why K19MW?
-Developed specifically for microwave oven doors
-Wide door compatibility range
-Stable motion characteristics
-Compact installation design
-High-temperature operating capability
-Long-cycle durability
-Efficient OEM integration
Product information is provided for informational purposes only. Specifications, dimensions, materials, performance characteristics, and available configurations may change without notice. Final product suitability should be evaluated for each specific application.
