A11 - Lightweight Lid Hinges
A compact sheet metal hinge developed for lower door applications. Its simple design provides a practical and cost-efficient solution for lightweight door systems.
- Premium Industrial Quality
- OEM Compatible
- Reliable Worldwide Shipping
Overview
A11 Lightweight Lid Hinge
Product Overview
The Atasan A11 lightweight lid hinge has been developed for lower door and auxiliary panel applications requiring a simple, compact, and practical hinge solution. Manufactured from sheet metal components, the A11 provides reliable door movement while maintaining a straightforward mechanical architecture.
Its compact design makes it suitable for lightweight door systems where functional simplicity and efficient integration are important considerations.
Simple & Compact Design
The A11 features a compact sheet metal construction optimized for lightweight door applications.
Its uncomplicated mechanical structure supports practical integration while providing stable opening and closing characteristics within the specified operating range.
Benefits
-Compact installation footprint
-Simple mechanical architecture
-Suitable for lightweight doors
-Efficient integration
-Practical and economical solution
Stable Door Operation
The hinge is designed to provide controlled and predictable movement for doors weighing between 0.6 and 3 kg.
Its geometry supports stable operation throughout the movement range while maintaining functional simplicity.
Structural Strength & Thermal Performance
Manufactured from durable sheet metal components, the A11 is suitable for appliance environments where compact dimensions and reliable operation are required.
The hinge is designed for operating temperatures of up to 115°C, making it suitable for cooking appliances and other heat-exposed applications.
OEM Integration & Manufacturing
The A11 has been developed for efficient integration into appliance production environments.
Its simple construction supports repeatable assembly processes and compatibility with high-volume manufacturing operations.
Applications
- -Lower oven doors
- -Auxiliary appliance doors
- -Microwave oven doors
- -Washing machine lids
- -Access panels
- -Industrial equipment covers

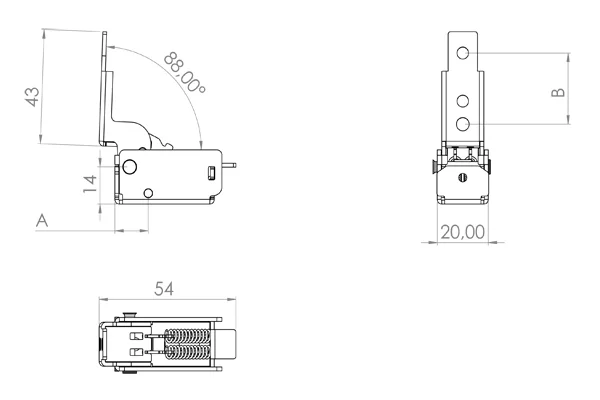

Technical Drawing
Detailed engineering schematic with all critical dimensions.
Specifications
Technical properties at a glance.
Technical Specifications
All values shown are nominal reference values and may vary depending on application conditions, installation methods, product configuration, and testing parameters.
Maximum load values are application-dependent and should be verified based on installation conditions, mounting configuration, and operating requirements.
Frequently Asked Questions
The A11 is designed to support door weights ranging from 0.6 – 3 kg, making it ideal for the specified category of appliances.
Yes, it is rated for operation at temperatures up to 115°C, which is standard for high-heat appliance environments.
Yes, all Atasan hinges undergo rigorous life cycle testing (often up to 10,000 or 20,000 cycles) to ensure they meet international OEM standards.
Why A11?
-Simple and compact design
-Suitable for lightweight door applications
-Sheet metal construction
-Easy integration
-High-temperature operating capability
-Cost-efficient solution
-OEM manufacturing compatibility
Product information is provided for informational purposes only. Specifications, dimensions, materials, performance characteristics, and available configurations may change without notice. Final product suitability should be evaluated for each specific application.
