A12 - Lightweight Lid Hinges
Developed for mini oven door applications, the A12 offers a compact and cost-effective hinge solution. Its small-size design supports efficient integration in products with limited installation space
- Premium Industrial Quality
- OEM Compatible
- Reliable Worldwide Shipping
Overview
A12 Lightweight Lid Hinge
Product Overview
The Atasan A12 lightweight lid hinge has been developed for mini oven doors and lightweight appliance applications requiring a compact and cost-efficient hinge solution. Its small-size sheet metal construction supports reliable door movement while enabling efficient integration into products with limited installation space.
Designed for lightweight door systems, the A12 combines functional simplicity with practical mechanical performance, making it suitable for a variety of domestic and industrial applications.
Compact Design for Lightweight Applications
The A12 features a compact architecture optimized for doors weighing between 0.6 and 3 kg.
Its reduced-size structure allows efficient integration into mini ovens and auxiliary access doors while supporting stable opening and closing characteristics.
Benefits
- -Compact installation footprint
- -Suitable for lightweight doors
- -Efficient use of available space
- -Cost-effective integration
- -Simplified product architecture
Stable Motion Characteristics
The hinge geometry is designed to provide predictable and controlled movement throughout the operating range.
Its mechanical structure supports stable door positioning while maintaining a simple and practical operating principle suitable for high-volume appliance production.
Structural Strength & Thermal Performance
Manufactured from sheet metal components, the A12 is designed for appliance environments where compact dimensions and mechanical reliability are important requirements.
Suitable for operating temperatures of up to 115°C, the hinge can be integrated into cooking appliances and other heat-exposed applications.
OEM Integration & Manufacturing
The A12 has been developed with production efficiency in mind.
Its straightforward construction supports repeatable assembly processes and compatibility with high-volume manufacturing environments.
Applications
- -Mini ovens
- -Microwave oven doors
- -Washing machine lids
- -Auxiliary appliance doors
- -Commercial kitchen equipment
- -Industrial access panels

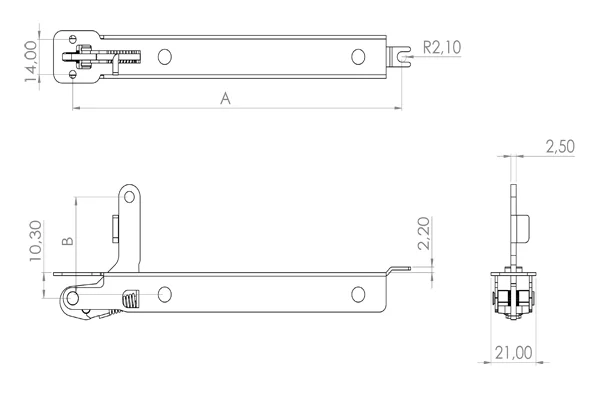

Technical Drawing
Detailed engineering schematic with all critical dimensions.
Specifications
Technical properties at a glance.
Technical Specifications
All values shown are nominal reference values and may vary depending on application conditions, installation methods, product configuration, and testing parameters.
Maximum load values are application-dependent and should be verified based on installation conditions, mounting configuration, and operating requirements.
Frequently Asked Questions
The A12 is designed to support door weights ranging from 0.6 - 3 kg, making it ideal for the specified category of appliances.
Yes, it is rated for operation at temperatures up to 115°C, which is standard for high-heat appliance environments.
Yes, all Atasan hinges undergo rigorouslife cycle testing (often up to 10,000 or 20,000 cycles) to ensure they meet international OEM standards.
Why A12?
-Compact small-size design
-Optimized for mini oven applications
-Cost-efficient hinge solution
-Suitable for limited installation spaces
-Durable sheet metal construction
-High-temperature operating capability
-Efficient OEM integration
Product information is provided for informational purposes only. Specifications, dimensions, materials, performance characteristics, and available configurations may change without notice. Final product suitability should be evaluated for each specific application.
