A14 - Lightweight Lid Hinges
Developed for mini oven door applications, the A14 combines a compact design with practical functionality. Its lightweight structure supports efficient integration while offering a cost-effective hinge solution.
- Premium Industrial Quality
- OEM Compatible
- Reliable Worldwide Shipping
Overview
A14 Lightweight Lid Hinge
Product Overview
The Atasan A14 lightweight lid hinge has been developed for compact appliance doors where space efficiency, functional simplicity, and cost-effective integration are important design considerations. Its small-sized architecture makes it particularly suitable for mini ovens and lightweight door applications while maintaining reliable motion characteristics and stable operation.
Designed as a practical hinge solution for OEM manufacturers, the A14 combines compact dimensions with a durable sheet metal construction, supporting efficient integration into a wide range of appliance platforms.
Compact Design for Small Door Applications
The A14 features a compact mechanical structure optimized for lightweight doors and limited installation spaces.
Its reduced-size architecture enables efficient integration into mini ovens and auxiliary appliance compartments while supporting stable door movement throughout the operating range.
Benefits
- -Compact installation footprint
- -Suitable for lightweight door applications
- -Efficient use of available space
- -Simplified appliance integration
- -Cost-effective platform solution
Stable Motion Characteristics
The hinge is designed to provide controlled and predictable movement for doors weighing between 0.6 and 3 kg.
Its geometry and structural configuration contribute to stable operation while supporting smooth opening and closing behavior in compact appliance applications.
Structural Strength & Thermal Performance
Manufactured from durable sheet metal components, the A14 is developed for appliance environments where compact size and mechanical reliability are both important requirements.
Suitable for operating temperatures of up to 115°C, the hinge can be integrated into cooking appliances and other heat-exposed equipment requiring stable mechanical performance.
OEM Integration & Manufacturing
The A14 has been developed with efficient production and assembly processes in mind.
Its straightforward architecture supports high-volume manufacturing while providing repeatable installation and consistent product quality across different appliance platforms.
Applications
- -Mini ovens
- -Compact cooking appliances
- -Microwave oven doors
- -Washing machine lids
- -Auxiliary appliance compartments
- -Industrial access panels

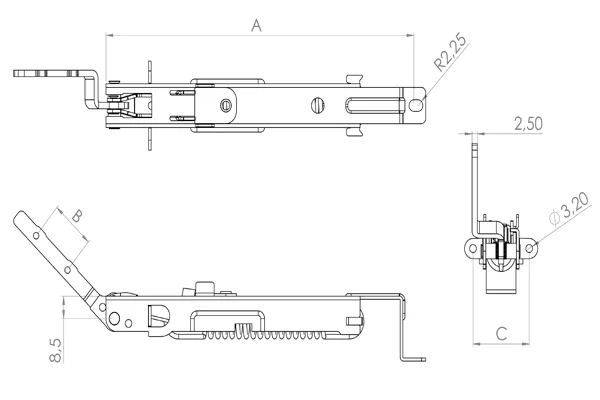

Technical Drawing
Detailed engineering schematic with all critical dimensions.
Specifications
Technical properties at a glance.
Technical Specifications
All values shown are nominal reference values and may vary depending on application conditions, installation methods, product configuration, and testing parameters.
Maximum load values are application-dependent and should be verified based on installation conditions, mounting configuration, and operating requirements.
Frequently Asked Questions
The A14 is designed to support door weights ranging from 0.6 – 3 kg, making it ideal for the specified category of appliances.
Yes, it is rated for operation at temperatures up to 115°C, which is standard for high-heat appliance environments.
Yes, all Atasan hinges undergo rigorous life cycle testing (often up to 10,000 or 20,000 cycles) to ensure they meet international OEM standards.
Why A14?
-Compact and lightweight design
-Optimized for mini oven applications
-Cost-effective integration
-Suitable for limited installation spaces
-High-temperature operating capability
-Durable sheet metal construction
-Efficient OEM manufacturing compatibility
Product information is provided for informational purposes only. Specifications, dimensions, materials, performance characteristics, and available configurations may change without notice. Final product suitability should be evaluated for each specific application.
