C11 - Top Cover Hinges
Developed for upper oven doors, the C11 features a lightweight plastic body design. Its compact construction supports practical integration and efficient appliance manufacturing.
- Premium Industrial Quality
- OEM Compatible
- Reliable Worldwide Shipping
Overview
C11 Top Cover Hinge
Product Overview
The Atasan C11 top cover hinge has been developed for upper oven doors and top cover applications requiring a lightweight, compact, and practical hinge solution. Featuring a durable plastic body construction, the C11 provides reliable motion characteristics while supporting efficient integration into modern appliance designs.
Its compact architecture makes it suitable for applications where reduced weight, installation flexibility, and cost-efficient manufacturing are important design considerations.
Lightweight Plastic Body Design
The C11 utilizes a plastic body structure developed for lightweight appliance applications.
This construction contributes to reduced component weight while maintaining the mechanical characteristics required for upper door and cover systems.
Benefits
- -Lightweight construction
- -Compact installation footprint
- -Reduced component weight
- -Efficient integration
- -Cost-effective solution
Stable Motion Characteristics
The hinge is designed to provide controlled and predictable movement for doors weighing between 1.5 and 4 kg.
Its geometry supports stable operation throughout the movement range while maintaining a simple and practical operating principle.
Structural Performance & Thermal Resistance
The C11 is suitable for appliance environments where reliable operation under elevated temperatures is required.
Designed for operating temperatures of up to 115°C, the hinge can be integrated into cooking appliances and other heat-exposed applications while maintaining stable operating characteristics.
OEM Integration & Manufacturing
The compact structure of the C11 supports straightforward integration into appliance production environments.
Its simple architecture enables efficient assembly processes and compatibility with high-volume manufacturing operations.
Applications
- -Upper oven doors
- -Oven top covers
- -Appliance access covers
- -Compact cooking appliances
- -OEM appliance manufacturing

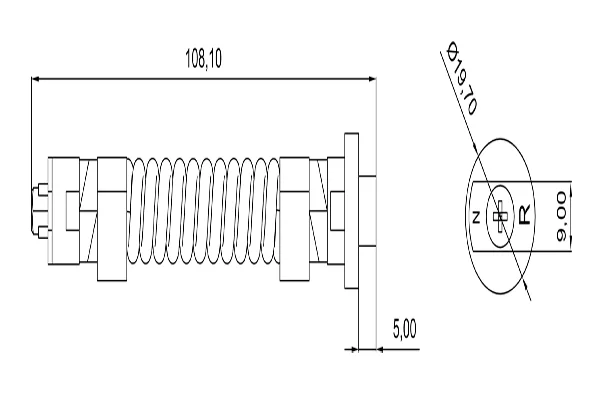

Technical Drawing
Detailed engineering schematic with all critical dimensions.
Specifications
Technical properties at a glance.
Technical Specifications
All values shown are nominal reference values and may vary depending on application conditions, installation methods, product configuration, and testing parameters.
Life cycle test results are based on internal testing under defined laboratory conditions and should not be interpreted as a guarantee of service life in any specific application.
Maximum load values are application-dependent and should be verified based on installation conditions, mounting configuration, and operating requirements.
Frequently Asked Questions
The C11 is designed to support door weights ranging from 1.5 – 4 kg, making it ideal for the specified category of appliances.
Yes, it is rated for operation at temperatures up to 115°C, which is standard for high-heat appliance environments.
Yes, all Atasan hinges undergo rigorous life cycle testing (often up to 10,000 or 20,000 cycles) to ensure they meet international OEM standards.
Why C11?
-Spring and friction-assisted balancing system
-Supports stable lid positioning at different opening angles
-Helps reduce sudden closing movements
-Lightweight plastic body construction
-Reduced component weight
-Suitable for upper glass lid applications
-Compact and practical design
-High-temperature operating capability
-Cost-efficient integration
-OEM manufacturing compatibility
Product information is provided for informational purposes only. Specifications, dimensions, materials, performance characteristics, and available configurations may change without notice. Final product suitability should be evaluated for each specific application.
