S11 - Top Cover Hinges
An aluminum/zamak alloy body hinge developed for upper oven doors and glass lid applications. Its compact design supports stable operation and practical integration into appliance platforms.
- Premium Industrial Quality
- OEM Compatible
- Reliable Worldwide Shipping
Overview
S11 Glass Lid Hinge
Product Overview
The Atasan S11 glass lid hinge has been developed for upper oven doors and glass lid applications requiring controlled movement, stable positioning, and durable operation. Featuring an aluminum or zamak alloy body construction, the S11 combines structural strength with a compact design suitable for a variety of domestic appliance platforms.
Its balancing mechanism supports smooth lid operation while maintaining stability throughout the movement range.
Controlled Lid Movement
The S11 is designed to support balanced and predictable movement for upper doors and glass lids.
Its mechanical structure contributes to stable positioning during operation, helping maintain consistent motion characteristics across different opening angles.
Benefits
-Stable lid positioning
-Controlled opening and closing movement
-Suitable for glass lid applications
-Consistent operating characteristics
-Practical user interaction
-Metal Body Construction
The hinge is available with aluminum or zamak alloy body options designed for applications requiring increased strength and durability.
This construction supports stable mechanical performance while maintaining compatibility with elevated-temperature appliance environments.
Structural Strength & Thermal Performance
The S11 is designed for operating temperatures of up to 115°C, making it suitable for cooking appliances and other heat-exposed applications.
Its structure supports door and lid weights between 1 and 4 kg while maintaining reliable operating characteristics under repeated use conditions.
Durability & Life Cycle Performance
The hinge has been evaluated through life cycle testing programs designed to assess performance under repeated operation.
Testing references include 10,000 opening and closing cycles, providing an engineering benchmark for durability evaluation and product validation.
OEM Integration & Manufacturing
The compact design of the S11 supports efficient integration into appliance production environments.
Its architecture enables compatibility with high-volume manufacturing processes while supporting consistent assembly quality across multiple appliance platforms.
Applications
- -Upper oven doors
- -Glass lid systems
- -Domestic cooking appliances
- -Small household appliances
- -Commercial kitchen equipment
- -Industrial access panels
- -OEM appliance manufacturing

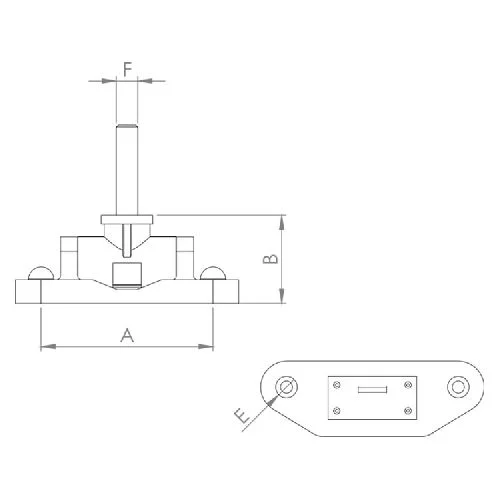

Technical Drawing
Detailed engineering schematic with all critical dimensions.
Specifications
Technical properties at a glance.
Technical Specifications
All values shown are nominal reference values and may vary depending on application conditions, installation methods, product configuration, and testing parameters.
Life cycle test results are based on internal testing under defined laboratory conditions and should not be interpreted as a guarantee of service life in any specific application.
Maximum load values are application-dependent and should be verified based on installation conditions, mounting configuration, and operating requirements.
Frequently Asked Questions
The S11 is designed to support door weights ranging from 1.5 – 6 kg, making it ideal for the specified category of appliances.
Yes, it is rated for operation at temperatures up to 115°C, which is standard for high-heat appliance environments.
Yes, all Atasan hinges undergo rigorous life cycle testing (often up to 10,000 or 20,000 cycles) to ensure they meet international OEM standards.
Why S11?
-Cam and spring positioning mechanism
-Keeps the lid fixed in the fully open position
-Aluminum or zamak alloy body options
-Stable lid positioning characteristics
-Suitable for glass lid applications
-Controlled opening and closing movement
-Compact and durable design
-High-temperature operating capability
-Tested for repeated-use applications
-OEM manufacturing compatibility
