C12 - Top Cover Hinges
An aluminum or zamak alloy body hinge developed for upper oven doors and glass lid applications. Its spring and friction system supports stable positioning and controlled movement.
- Premium Industrial Quality
- OEM Compatible
- Reliable Worldwide Shipping
Overview
C12 Glass Lid Hinge
Product Overview
The Atasan C12 glass lid hinge has been developed for upper oven doors and glass lid applications requiring increased load capacity, stable positioning, and reliable operation. Combining spring force and friction characteristics, the hinge supports balanced lid movement while helping maintain controlled positioning at different opening angles.
Featuring an aluminum or zamak alloy body construction, the C12 is particularly suitable for applications requiring higher strength, improved thermal resistance, and enhanced durability.
Spring & Friction Balancing System
The C12 operates through a combination of spring force and friction to balance lid loads throughout the operating range.
This mechanism supports stable positioning at various opening angles while contributing to controlled movement during opening and closing operations.
Benefits
- -Stable lid positioning
- -Balanced opening and closing movement
- -Controlled motion characteristics
- -Suitable for glass lid applications
- -Improved user comfort
Metal Body Construction
The hinge is available with aluminum or zamak alloy body options developed for demanding appliance environments.
Compared to lightweight plastic alternatives, the metal body construction provides increased structural strength and enhanced thermal stability.
Structural Strength & Thermal Performance
Designed for operating temperatures of up to 115°C, the C12 is suitable for cooking appliances and other heat-exposed applications.
Its robust construction supports door and lid weights between 1.5 and 6 kg while maintaining stable operating characteristics.
Safety & Controlled Operation
The spring and friction system helps reduce sudden closing movements that may occur during operation.
This contributes to more controlled lid behavior and supports applications where glass components are used.
OEM Integration & Manufacturing
The C12 has been developed for efficient integration into appliance manufacturing processes.
Its compact architecture and durable construction support compatibility with high-volume production environments and a wide range of appliance platforms.
Applications
- -Upper oven doors
- -Glass lid systems
- -Cooking appliances
- -Small domestic appliances
- -OEM appliance manufacturing

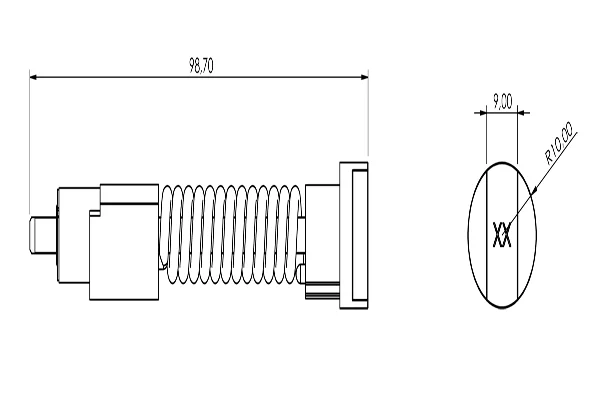

Technical Drawing
Detailed engineering schematic with all critical dimensions.
Specifications
Technical properties at a glance.
Technical Specifications
All values shown are nominal reference values and may vary depending on application conditions, installation methods, product configuration, and testing parameters.
Life cycle test results are based on internal testing under defined laboratory conditions and should not be interpreted as a guarantee of service life in any specific application.
Maximum load values are application-dependent and should be verified based on installation conditions, mounting configuration, and operating requirements.
Frequently Asked Questions
The C12 is designed to support door weights ranging from 1.5 – 6 kg, making it ideal for the specified category of appliances.
Yes, it is rated for operation at temperatures up to 115°C, which is standard for high-heat appliance environments.
Yes, all Atasan hinges undergo rigorous life cycle testing (often up to 10,000 or 20,000 cycles) to ensure they meet international OEM standards.
Why C12?
-Spring and friction-assisted balancing system
-Supports stable positioning at different opening angles
-Helps reduce sudden closing movements
-Suitable for glass lid applications
-Aluminum or zamak alloy body options
-Enhanced thermal resistance for demanding environments
-Higher load capacity compared to plastic-body alternatives
-Controlled and stable lid movement
-Suitable for elevated-temperature appliance applications
-OEM manufacturing compatibility
Product information is provided for informational purposes only. Specifications, dimensions, materials, performance characteristics, and available configurations may change without notice. Final product suitability should be evaluated for each specific application.
